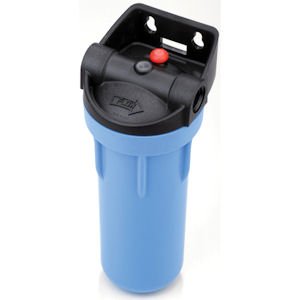

The Pentek 158648 3G Slim Line 10 inch Black/Blue IB Housing with Pressure Release features:
- 1/2″ inlet outlet
- Dimensions: 12 1/8″ x 4 3/8″
- Uses a Buna-N Oring
- With Pressure Release
- With integral bracket
- Blue blow and a black polypropylene reinforced head
This product must be ordered in quantities of 12.
Slim Line® filter housings are available in either reinforced polypropylene or clear Styrene-Acrylonitrile (SAN) in 5″, 10″ and 20″ lengths. The black or blue reinforced polypropylene housing caps are available with 1/4″, 3/8″ or 1/2″ NPT connections. Four bosses are molded into every cap for mounting purposes.
They are equipped with a black, reinforced polypropylene cap and offer an optional pressure-relief button on the inlet side to relieve pressure inside the housing when changing filter cartridges.
Slim Line® filter housings are an excellent choice for low-flow applications and when space and chemical compatibility are primary concerns.
For more details, contact FilterPure at 1-800-947-7873.
Download the Pentek 158648 3G Specification Sheet here.
